Description
The KTB8252/KTB8253 is a 8A synchronous buck regulator with integrated high-side and low-side power MOSFETs. The device operates over a wide input voltage range from 4.5V to 24V.
Kinetic buck proprietary advanced adaptive on-time (AOT) control supports fast transient response and high output voltage accuracy. This control technique eliminates external loop compensation network and allows the use of ceramic output capacitors without ripple-generating circuitry. This feature enables a very small total solution size and makes the KTB8252/KTB8253 easy to use.

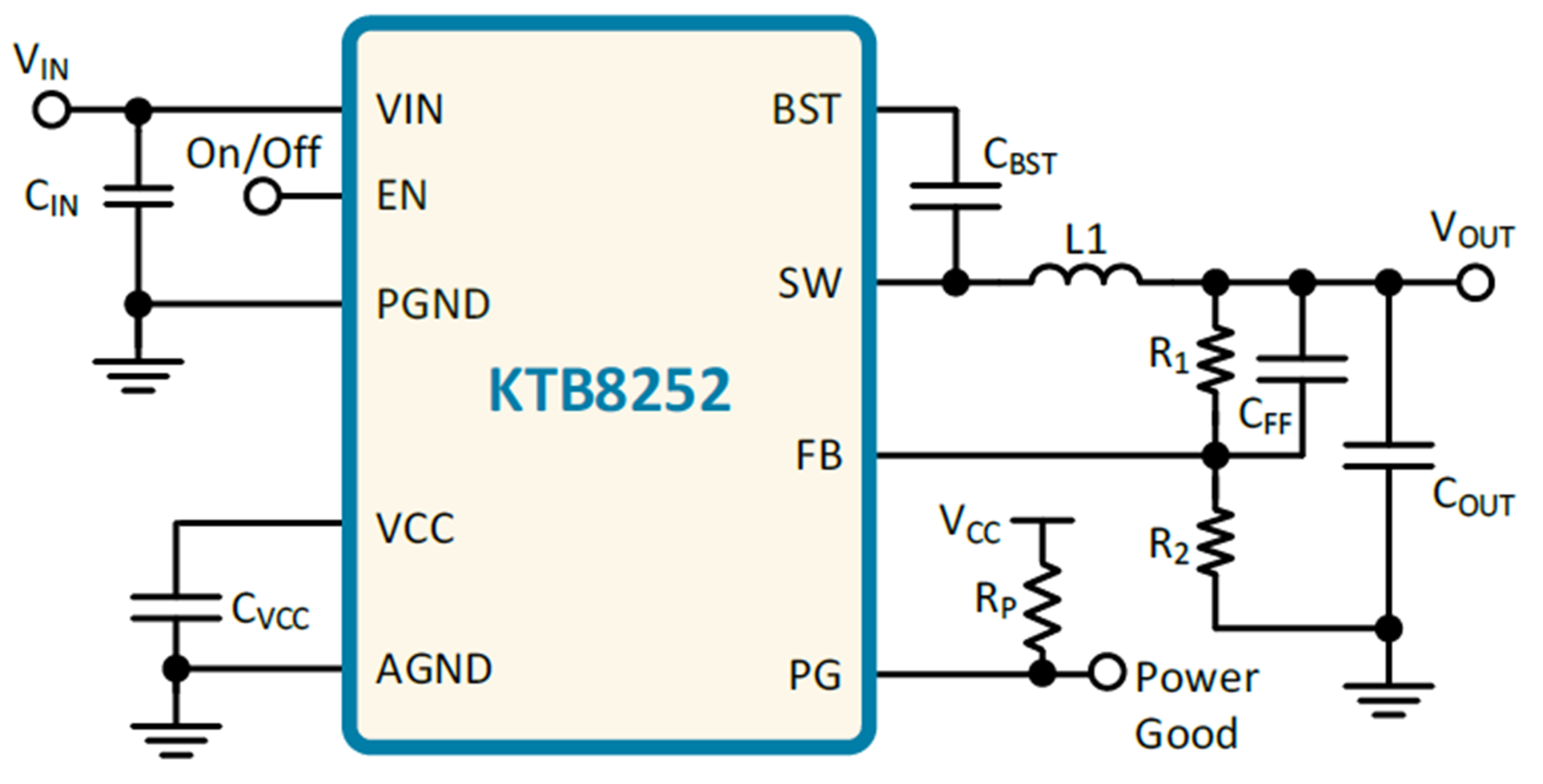

The device features an internal soft start function to limit inrush current during start-up. The output voltage can be adjusted with a feedback resistor divider connected to the FB pin (KTB8252). The device has comprehensive built-in protection features including input voltage UVLO, cycle-by-cycle valley current limit, short-circuit protection, output over-voltage protection, and thermal shutdown.

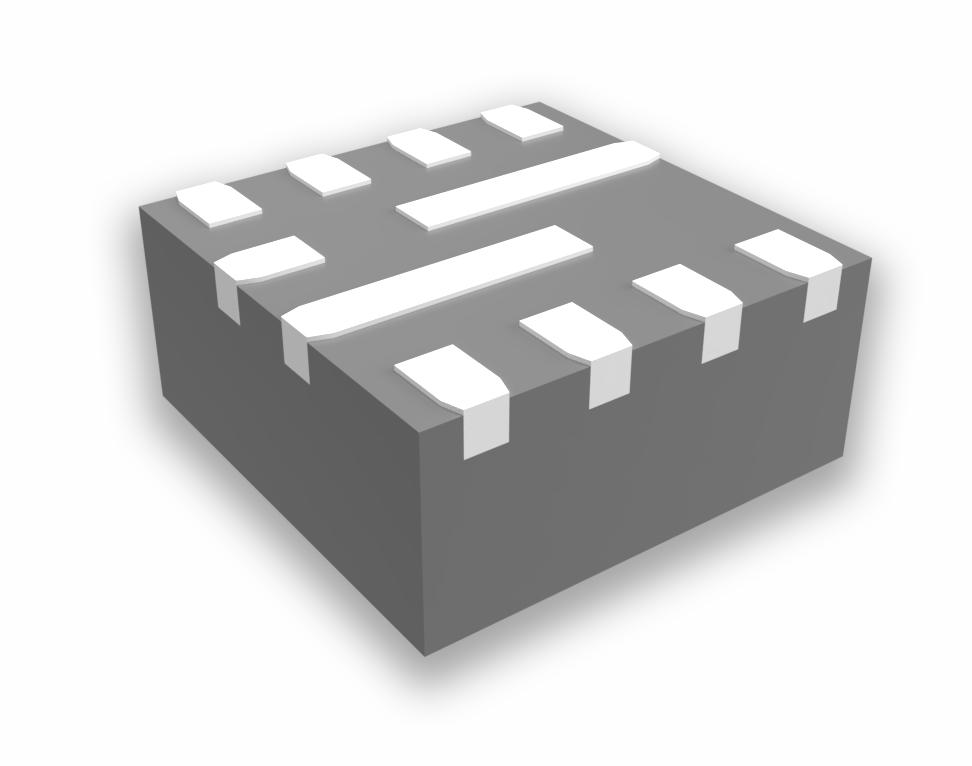

The KTB8252/KTB8253 is available in a thermal-enhanced 11-pin VQFN (2.0mm x 2.0mm x 0.9mm) package.
Features
- Wide VIN Range: 4.5V to 24V
- Continuous Output Current: 8A
- Instantaneous 11A Output Current
- Adjustable Output Voltage from 0.6V to 5.5V
- Integrated High / Low-Side FETs
- Advanced Adaptive On-Time Control
- Fast Transient Response
- ±1% Feedback Voltage Reference 0.6V (at 25°C)
- KTB8252 External FB feedback pin
- Internal VCC LDO
- LDO active only when VIN present and EN high

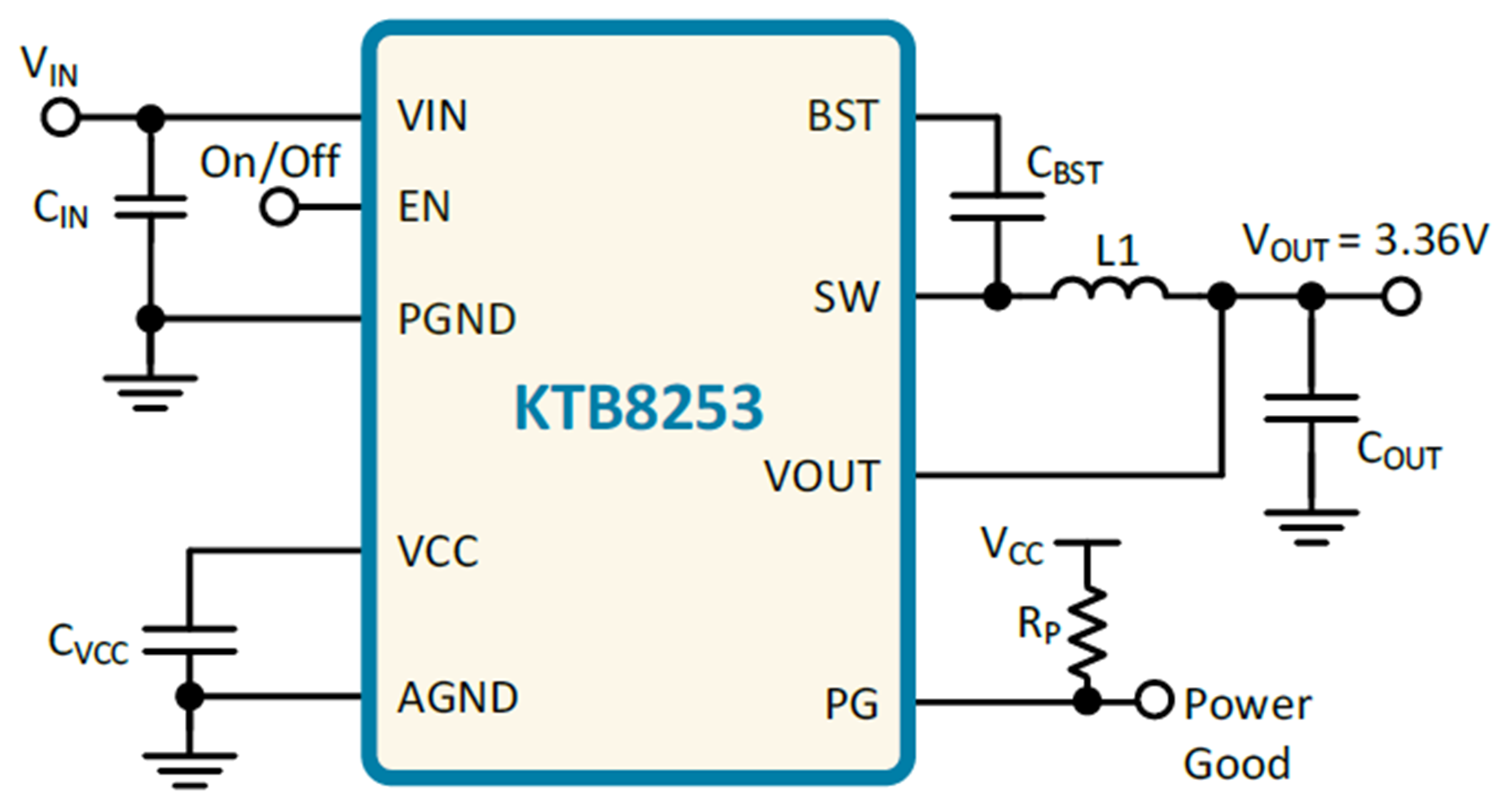

- KTB8253 Internal feedback with 3.36V fixed output
- Internal 100mA VCC LDO
- LDO active when VIN present and EN low
- When buck is up and running VCC LDO switches over to buck output
- KTB8252 Low Quiescent Current: 93µA
- High Efficiency in Light Load and Heavy Load
- Fixed 700kHz switching frequency
- Built-in Cycle-by-Cycle Current Limit, Short Circuit Protection, Input UVLO, Output Under-Voltage Protection, Output Over-Voltage Protection, and Thermal Shutdown Protection
- Latch-off after output Under/Over-voltage fault (for Auto-retry mode, please contact factory) Small VQFN (2.0mm x 2.0mm) Package
Applications
- Docking Stations USB Powered 12V / 20V
- Telecom & Networking, Point-of-Load
- 12V to 20V Tools and Devices
- Servers, Notebooks, Tablets
Packaging Information
| Package | Dimensions | Package Code |
| VQFN22-11 | 2mm x 2mm x 0.9mm | UAY |
Technical Documentation
| Description | Documents | Type |
|---|---|---|
| Package Outline Drawing | VQFN22-11 UAY POD |
