Description
KTE7200 is a robust single chip wireless power receiver optimized for low cost, low component count, and low cost PCB designs. This device is optimized for small low power devices with small coils, while also being capable of as much as 5 watts of output with an appropriate thermal design.
This is a microcontroller based design, optionally configurable by OTP memory, resistor programming features, and/or control via the I2C interface.
KTE7200 is highly integrated including 8k ROM, 8k OTP memory, an LDO regulator with OVP/OCP/RCP, and precision regulated DC output.
Features
- Single-Chip Solution up to 5-watt wireless power
- WPC/Qi v1.2 Standards Compatible
- Optimized for small coil designs
- Reliable low voltage startup
- Fixed 5.1V LDO regulated output
- High efficiency synchronous rectifier for system level efficiency up to 78%
- Output protection current limit
- Robust fully internal overvoltage protection
- Multifunction GPIO with switchable high precision 20µA current source
- I2C Serial Interface, Enable input, Interrupt output
- -40°C to 85°C Operating Temperature Range
- Standard TQFN-24 package (5mm x 5mm x 0.750mm)
Applications
- Earbud Cases, Mice, IoT Devices, Accessories
- Personal Care Products, Toys, etc.
- Other Battery-Powered Equipment
- Battery-free Devices using only wireless power

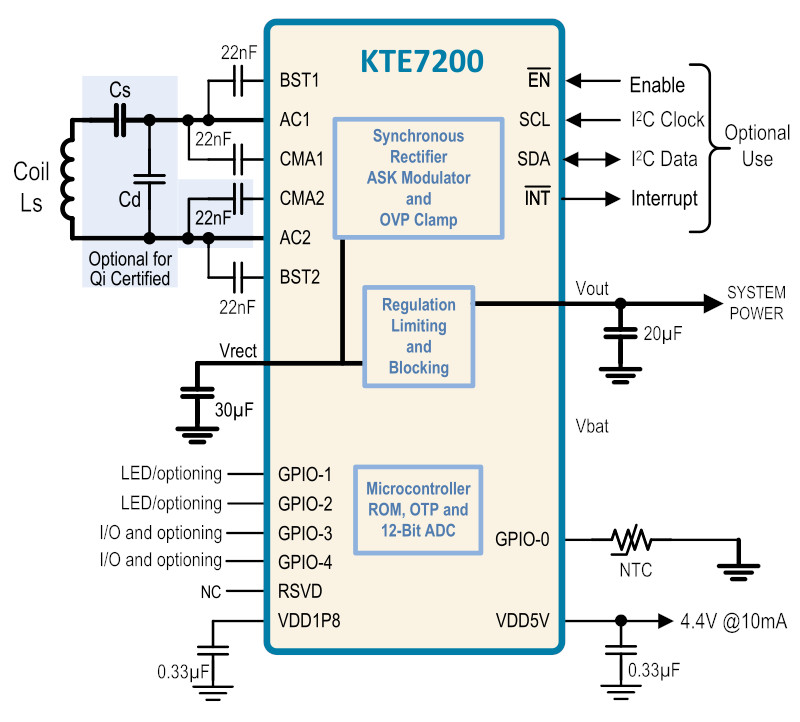

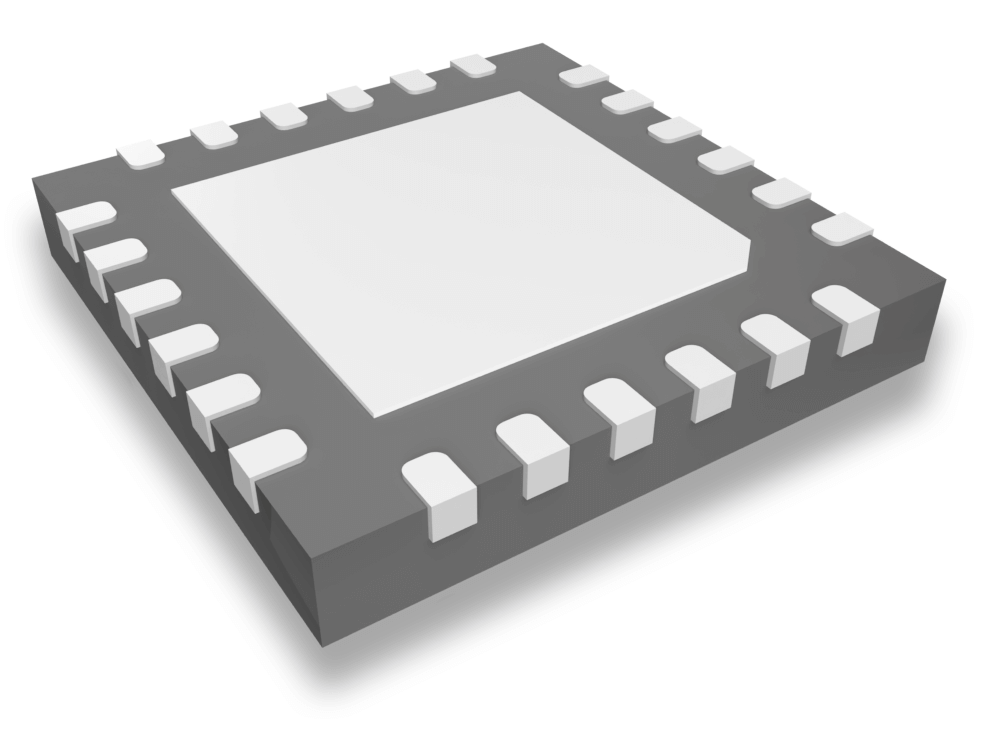

Package |
Dimensions |
Bumps |
Package Code |
TQFN55-24 |
5.00mm x 5.00mm x 0.75mm |
24 |
UAK |
Parameters
Function |
Input Voltage Range (V) |
Input Integrated Voltage Clamp (V) |
Output Voltage Range (V) |
Output Power (W) |
Wireless Power Standard |
Power Receiver |
– |
25 |
3.2-5.5 |
5 |
WPC/Qi v1.2.4 and v1.3 |
Technical Documentation
Purchase
Part Number |
Marking |
Operating Temperature |
Package |
KTE7200EUAK-DA-TB |
KTE7200-DA
YYWWVXXX |
-40°C to +85°C |
TQFN55-24 |
